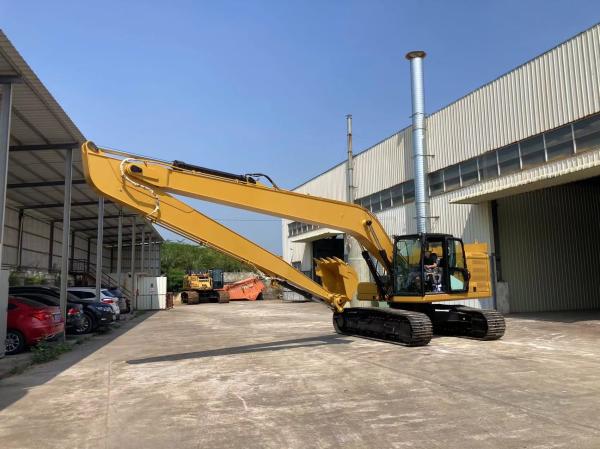

Excavator Long Boom Arm with bucket and bucket Cylinder Q355B Material Long reach
Catalogue of excavator long boom product and attachment
Catalogue ZH excavator boom arm.pdf
Catalog of long reach boom.pdf
hi, Are you looking for a long reach boom for excavator ? this is sophia from Zhonghe Machinery, Nice to meet you!
Our factory professional produce long reach boom for more than 7 years , we get many good feedback and reorder from our clients , Our product quality is number 1 in the China Market with best price and best service . we have lots of export experience to many countries.
To save your precious time , Please add my whatsapp directly to contact 008618127591702 , Sophia will very happy to offer you the quotation and shipping cost . We are looking forward a business chance to cooperated with you .
Thank you very much , i am waiting for you :)
Sincerely
Sophia
The Advantage of Long reach boom
01 Use Q355B material,
02 Adopts precision steel pipeline
03 Adopt alloy copper sleeve big arm base
04 Two layers groove welded to ensure
05 Double quality inspection before leaving
06 The tolerance of position size within 1 mm
07 Angle of boom and arm can reach 163°
Product advantage of long reach boom arm
LESS MAINTAINCE
Using high quality materials, such as Q355B as default, Q690D optional, Niningbo connectors, seamless precision piplines, graphite alloy copper sleeve, strong but light bucket cylinder.
2. Strong and sturdy
Built-in reinforcing ribs. Professional welding skill towards different bearing position. Groove preparation(45° edge-mining) before welding.
SECOND--CORE DESIGN TECHNOLOGY
1. Tolerance within 5-10um
Hole drilling tolerance is within 5-10um, ensure the accuracy.
2. Reach deeper and higher
Max work range and the max digging height are larger as angle of boom and arm can reach 163 degrees.
3. High work efficiency and save fuel
Lighter while taking into account the quality, it not only ensures work efficiency but also saves fuel.
The specification of long reach arm for excavator
| Excavator Ton | Total Length(mm) | (A)Boom(mm) | (B)Arm(mm) | Maximum Digging Radius(mm) | Maximum Digging Depth(mm) | Maximum Unloading Height(mm) | Maximum Digging Height(mm) | Bucket Volume(cbm) | Cylinder(ton) |
| 11-15T | 13000 | 7250 | 5750 | 11200 | 9000 | 7550 | 9350 | 0.15-0.3 | 12T |
| 20-25T | 15400 | 8220 | 7180 | 14500 | 11300 | 10400 | 12600 | 0.4-0.6 | 12T |
| 20-30T | 18000 | 10000 | 8000 | 17300 | 13000 | 17200 | 14000 | 0.4-0.7 | 12T |
| 35-40T | 20000 | 11000 | 9000 | 19200 | 14900 | 12900 | 15200 | 0.6-1.2 | 12T |
| 40-45T | 22000 | 12000 | 10000 | 21300 | 16000 | 14000 | 17000 | 0.5-1 | 20T |
| 40-50T | 24000 | 13000 | 11000 | 23000 | 17900 | 15200 | 18100 | 0.5-1.1 |
Our Long Reach Booms Sticks fit most makes and models,
Include but not limit below models.
Komatsu Excavator Model: PC160LC-8, PC200, PC210, PC228, PC220 PC270, PC300, PC350, PC450, PC600, PC850, PC1250
Caterpillar Excavator Model: CAT320, CAT323, CAT326, CAT329, CAT330, CAT335, CAT336, CAT349, CAT352, CAT374, CAT390
Hitachi Excavator Model: ZX210, EX200, EX220, EX330, EX350, ZX200, ZX240, ZX330, EX350, EX400, ZX470, ZX670, ZX870, EX1200, EX1900
Volvo Excavator Model: EC220, EC235, EC250, EC300, EC350, EC355, EC380, EC480, EC750
Doosan Excavator Model: DX225, DX235, DX255, DX300, DX350, DX420, DX490, DX530, DX800
Kobelco Excavator Model: SK200, SK210, SK220, SK250, SK260, SK300, SK330, SK350, SK380, SK460, SK500, SK850
Sumitomo Excavator Model:?SH210, SH225, SH240, SH300, SH330, SH350, SH460, SH480, SH500, SH700, SH800
Hyundai Excavator Model: R200, R210, R220, R290, HX220, HX235, HX260, HX300, HX330, HX380, HX430, HX480, HX520, R1200
Factory advantage of long boom excavator arm
1. 14000㎡ Workshop
We has more than 14000㎡ steel structure standard workshop with a large number of high precision processing equipments.
2. High-tech R&D Team
We use precision drawing software to achieve the max working range under the premise of safe operation.
3. Experienced Workers
There are more than 60 skillful staffs, 30 welding workers with over 5 years welding experience.
4. Customization
(1)Match all brand excavator.
(2)Color, length, material can do according to you.
(3)Extra pipeline can be added to suit to some extra application.
5. Prompt Lead Time
(1)Our lead time is 7-15 days.
(2)Our annual output of various types of excavator boom arms can reach 600 sets.
Construction Case
