Factory High Quality Wholesale 26M 28M 30M 30 ton- 50 ton Excavator High Reach Demolition Boom
click here to check out the catalog:Zhonghe Machinery Catalog-Contact Sales Manager Aria Directly
ZHONGHE MACHINERY'S ADVANTAGES
1. 14000㎡ Workshop with Precision Equipments
We has more than 14000㎡ steel structure standard workshop with a large number of high precision processing equipments.
2. High-tech R&D Team
We use precision drawing software to achieve the max working range under the premise of safe operation.
3. Experienced Workers
There are more than 60 skillful staffs, 30 welding workers with over 5 years welding experience.
4. Customization
(1)Match all brand excavator.
(2)Color, length, material can do according to you.
(3)Extra pipeline can be added to suit to some extra application.
5. Prompt Lead Time
(1)Our lead time is 7-15 days.
(2)Our annual output of various types of excavator boom arms can reach 600 sets.
6. Excellent Service
(1)24 hours online service.
(2)Can make an appointment for technical video support.

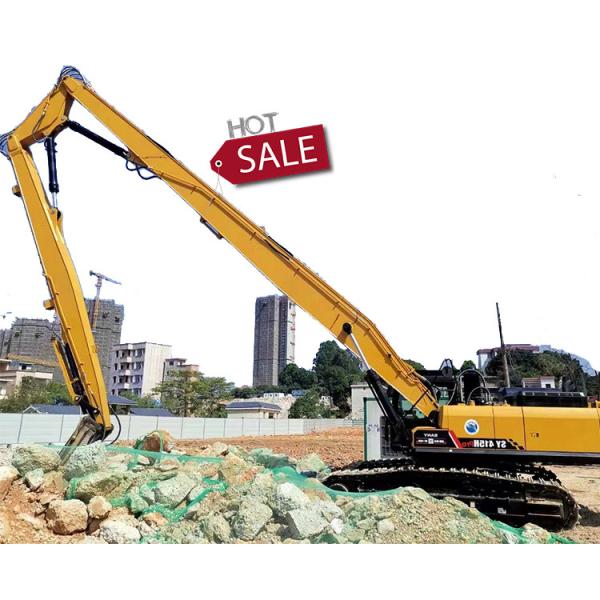

ZHONGHE excavator high reach demolition boom
The excavator demolition boom is a group of an excavator's working device. In particular, a section of middle arm is added. It is specially designed to increase the safe distance between the cockpit and the working parts, which is designed to three sections or multi sections generally.
1. Mainly used for demolishing high buildings;
2. Made of high strength steel plate;
3. Completely match with the crusher;
4. Convenient for installation and detachment;
Zhonghe excavator high reach demolition boom's advangtages
1. Q355B as default, Q690D optional.
2. Key Force-bearing Parts are Reinforced.
3. Welding is full and smooth.
4. Adopt national standard precision pipelines.
5. Boom bushing come with an alloy copper sleeve(with self-lubricating carbon powder inside).
6. Boom and sticks' angle can be opened to achive 180°
ZHONGHE excavator high reach boom configuration
| Three-section Demolition Boom Accessories |
| name | Unit | mian material | warranty(day) |
| Boom | 1 | Q355B | 360 |
| Middle arm | 1 | Q355B | 360 |
| Arm | 1 | Q355B | 360 |
| Bucket | 1 | Q355B | 90 |
| 22 ton Bucket cylinder | 1 | — | 180 |
| Linkage assenbly | 1 | Q355B | 180 |
| Pin | 8 | 40Cr | 0 |
| High-pressure hose | 22 | 4 layers wire ring | 0 |
| Lubrication pipe | 5 | 1 layer wire ring | 0 |
| Shut-off valve | 10 | — | 0 |
The specification of excavator high reach arm demolition
| Excavator Ton | Total Length(mm) | (A)Transport Height(mm) | (B)Maximum Lifting Height(mm) | Limit weight of hydraulic shear(kg) | Cylinder(Ton) | Counterweight(Ton) |
| 25T | 16000 | 3160 | 14900 | 2000 | 20T | 4T |
| 30T | 18000 | 3300 | 17000 | 2000 | 20T | 4.5T |
| 35T | 20000 | 3300 | 19000 | 2000 | 20T | 4.5T |
| 40T | 22000 | 3400 | 21050 | 2000 | 20T | 5T |
| 45T | 24000 | 3400 | 23100 | 2000 | 20T | 5T |
Case of construction
Company profile
CERTIFICATIONS
CE certification & Utility model patent certificates
TOP PICKS
Please feel free to contact Aria directly!
Click here to connect with Aria: Whatsapp/Wechat:+86 13822325403
Email:excavatorlongarm@gmail.com
